Overview

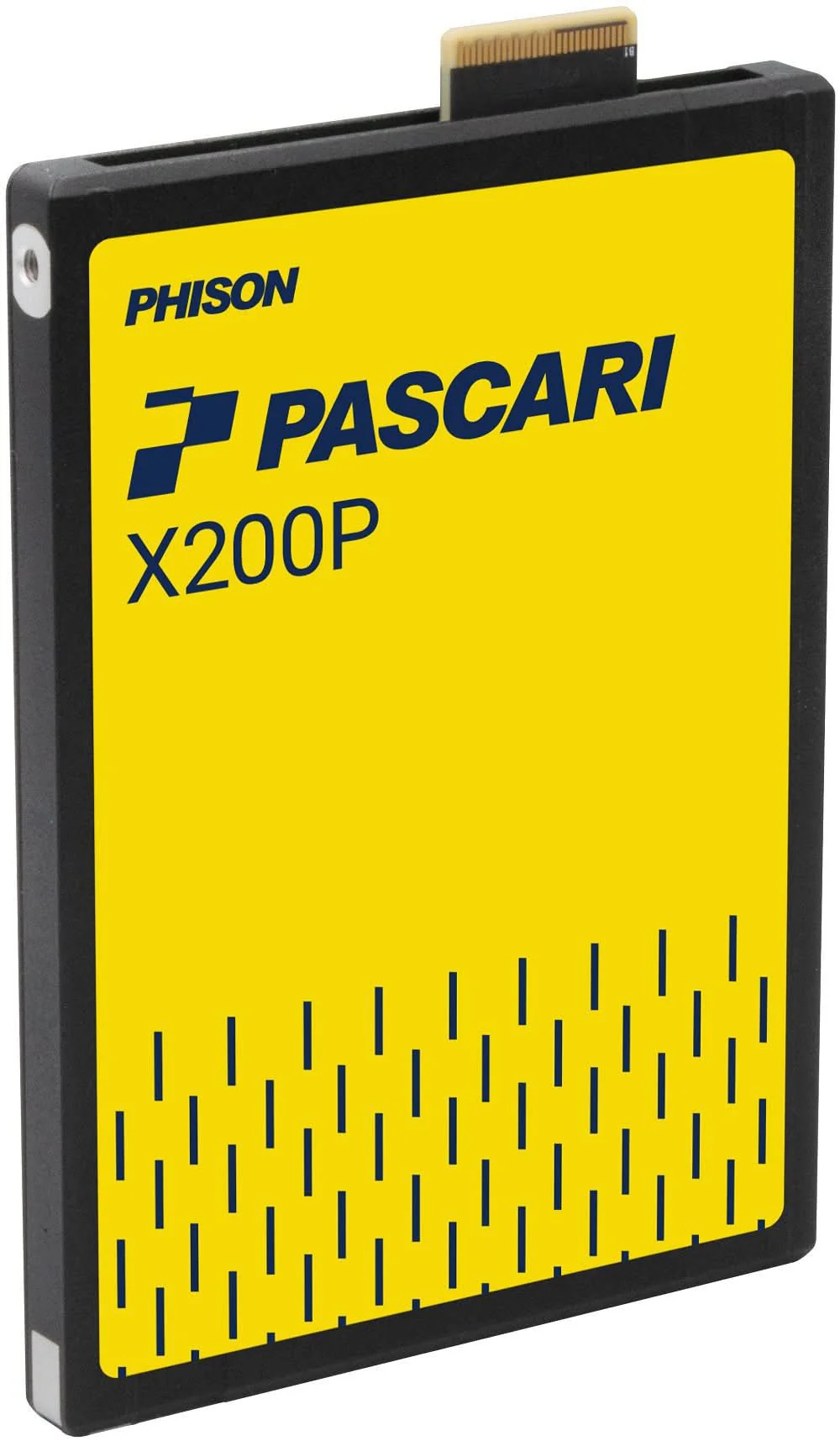

 PHISON XP20DH037T68P318T1910 Pascari X200P 7.68TB E3.S PCIE 5.0 Single Port ISE SSD

Specifications

Model Number:  XP20DH037T68P318T1910

Brand:   PHISON

Alt Part Number(s):    XP20DH037T68P318T1910

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP20DH037T68P318T1910

Capacity: 7.68 TB

Form Factor: E3.S

Interface: PCIe Gen5 x4 (Single Port)
Advanced Error Reporting: PCIe AER

Compliance:
PCI Express Base Spec Rev. 5.0
NVMe Base Spec Rev. 2.0
NVMe-MI Rev. 1.2
SNIA SFF-TA-1009 / 1008

Sequential Read: up to 14,800 MB/s
Sequential Write: up to 8,700 MB/s
Random Read: up to 3,200K IOPS
Random Write: up to 460K IOPS

Active Power (128K Read, Avg. RMS): 17 W
Active Power (128K Write, Avg. RMS): 22 W
Active Power (4K Read, Avg. RMS): 20 W
Active Power (4K Write, Avg. RMS): 25 W
Active Power (4K 70/30 R/W, Avg. RMS): 21 W
Idle Power: 5 W

MTBF (million hours): 2.5
UBER: < 1 sector per 10¹⁸ bits read
DWPD: 1
TBW: 14.016 TB

Operating Temp. (°C): 0 – 70 (with airflow)
Non-Operating Temp. (°C): -40 – 85

Shock (Operating): 500 G, 2 ms
Shock (Non-Operating): 1000 G, 0.5 ms
Vibration (Operating): 2.17 Grms (7–800 Hz)
Vibration (Non-Operating): 16.3 Grms (10–2000 Hz)
Drop: 80 cm, 6 surfaces
Bending: 50 N, 60 s

Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Environmental Compliance: RoHS

Features:
LBAF: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes
128 Namespaces
Single Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
SMBus Support

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
