PHISON XP20DH037T68P218T1910 Pascari X200P 7680 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD

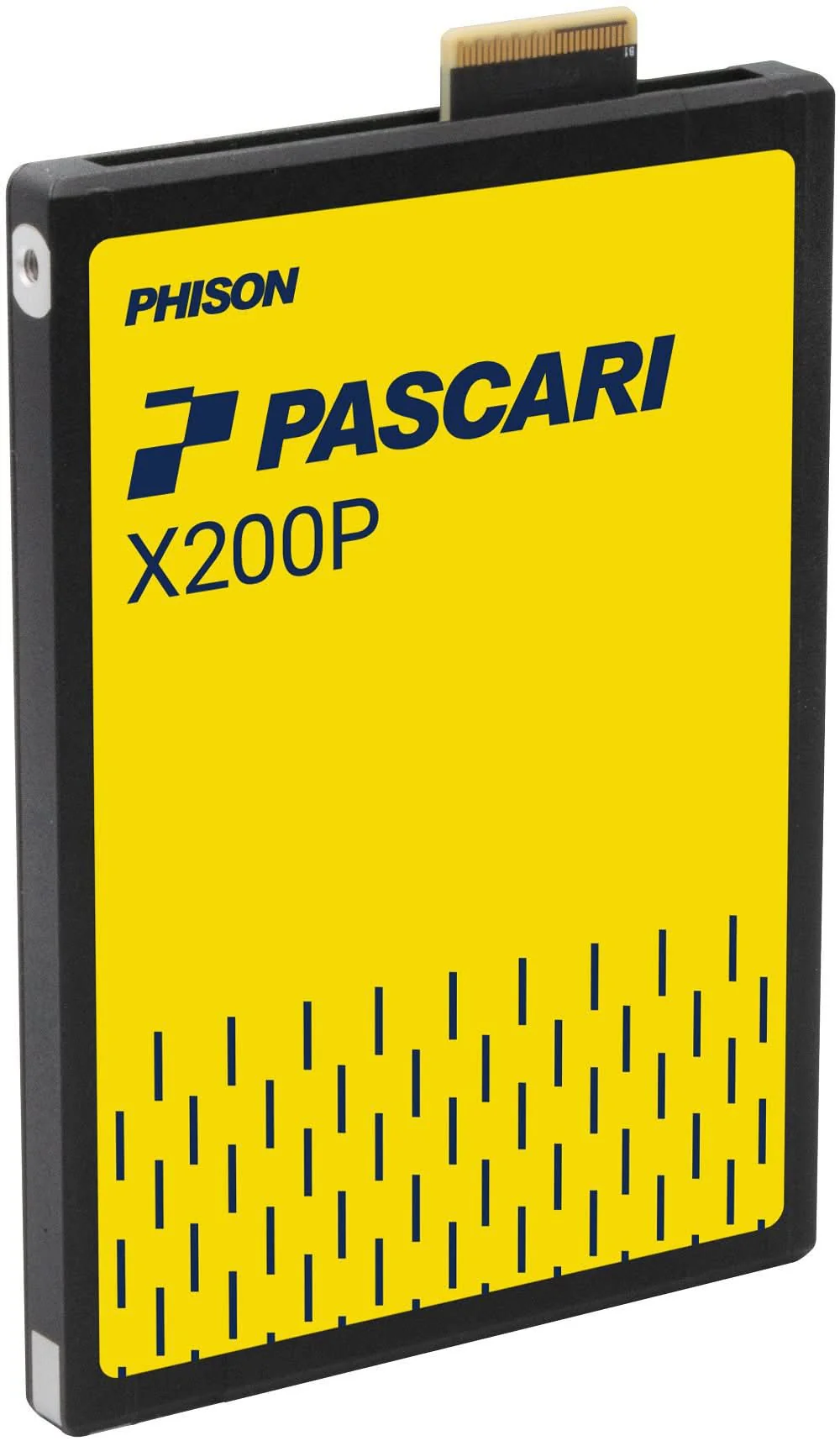

Product image 1

PHISON XP20DH037T68P218T1910 Pascari X200P 7680 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD

Overview

PHISON XP20DH037T68P218T1910 Pascari X200P 7680 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD

Specifications

Model Number:  XP20DH037T68P218T1910

Brand:   PHISON

Alt Part Number(s):    XP20DH037T68P218T1910

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP20DH037T68P218T1910

Storage Capacity: 7.68 TB

Form Factor: E3.S

Security: Opal

Drive Interface: PCI Express NVMe

Drive Interface Standard: PCIe Gen5 x4 (Single Port)

Compliance:

  • PCI Express Base Specification Rev. 5.0
  • NVM Express Base Specification Rev. 2.0
  • NVM Express Management Interface Rev. 1.2
  • PCI Express SFF-8639 Module Specification Revision 4.0, Version 1.0

Flash Type: 3D eTLC

Flash Configuration: 512 GB x 16

Performance:

  • Maximum Sequential 128KB Read/Write (QD=32, Workers=1): 14,000 / 8,500 MB/s
  • Maximum 4K Sustained Random Read/Write (QD=64, Workers=8): 3,000,000 / 400,000 IOPS
  • Latency 4K Sustained Random Read/Write (µs):
      - 60 / 10 (QD=1, Workers=1)
      - 85 / 160 (QD=4, Workers=8)
      - 190 / 1500 (QD=64, Workers=8)
  • IOPS Consistency 4KB Sustained Random Read/Write: 95% / 95%
  • 4KB Sustained Random Read/Write Quality of Service (QoS=99%):
      - 80 / 12 (QD=1, Workers=1)
      - 120 / 160 (QD=4, Workers=8)
      - 450 / 1500 (QD=64, Workers=8)

Power Consumption:

  • Active Power: 25 W
  • Inrush Current: 2.5 A
  • Idle Power: < 9 W

Endurance (DWPD): 1

Endurance (TBW): 14,016 TB

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read (3D NAND)

LBA Formats: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

Advanced Flash Management:

  • ECC
  • Static and Dynamic Wear Leveling
  • Bad Block Management
  • Deallocate (TRIM) Command
  • SMART
  • Over-Provisioning
  • Firmware Upgrade

Temperature Range:

  • Operating: 0°C to 70°C (with specified airflow)
  • Storage: -40°C to 85°C

Data Retention: 3 months

Enterprise Features Support:

  • Namespace
  • Single Port
  • Reservation
  • Metadata Protection
  • Thermal Throttling
  • Power Loss Protection
  • Hardware AES-XTS 256-bit Encryption
  • SMBus Support
  • NVMe-MI (Management Interface) Support

RoHS Compliance: Yes

Supply Voltage:

  • 12V ±10% (Noise level: 240mVp-p, 0–20 MHz)
  • 12V Minimum Off Time: 500 ms
  • 3.3V Aux ±15%

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
