Overview

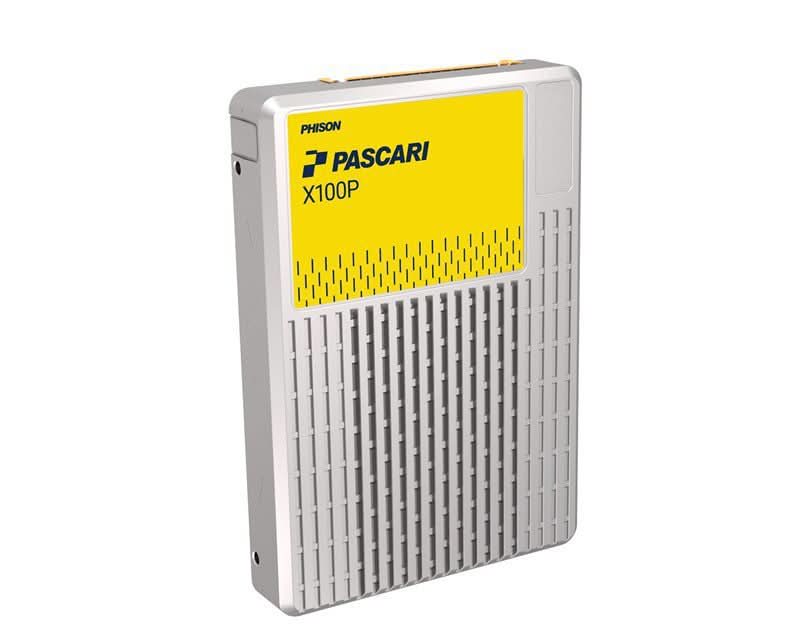

 PHISON XP106H0115T3P0116T300 Pascari X100P 15.36 TB U.2 Single Port PCIe Gen4x4 Non-Opal Security SSD

Specifications

Model Number:  XP106H0115T3P0116T300

Brand:   PHISON

Alt Part Number(s):    XP106H0115T3P0116T300

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XP106H0115T3P0116T300

Capacities: 15.36 TB

Form Factor: U.2

Interface: Single Port

Security: Non-Opal

PCIe Interface
PCIe Gen4x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)

Performance
Maximum Sequential Read / Write: 7000MB/s / 6800MB/s
Maximum Random Read / Write: 1600KIOPS / 180KIOPS
Sustained Random Read / Write Latency (µs): 100/15 (QD=1, Workers=1); 110/300 (QD=32, Workers=1); 450/3800 (QD=64, Workers=8)
IOPS Consistency: 95%
QoS (Quality of Service, 99%) Read / Write: 100/12 (QD=1, Workers=1); 120/200 (QD=32, Workers=1); 600/3000 (QD=64, Workers=8)

DWPD: 1DWPD

TBW: 28032 TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits read

Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range
Operation: 0°C - 70°C with specified airflow
Storage: -40°C - 85°C

RoHS compliant

Enterprise Features Support List

Namespace: Supported

Single Port: Supported

Reservation: Supported

Metadata Protection Thermal throttling: Supported

Power Loss Protection: Supported

Hardware AES-XTS 256-bit Encryption: Supported

Support SMBus: Yes

Support NVMe-MI (Management Interface): Yes

Data Retention: 3 months

Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
