Overview

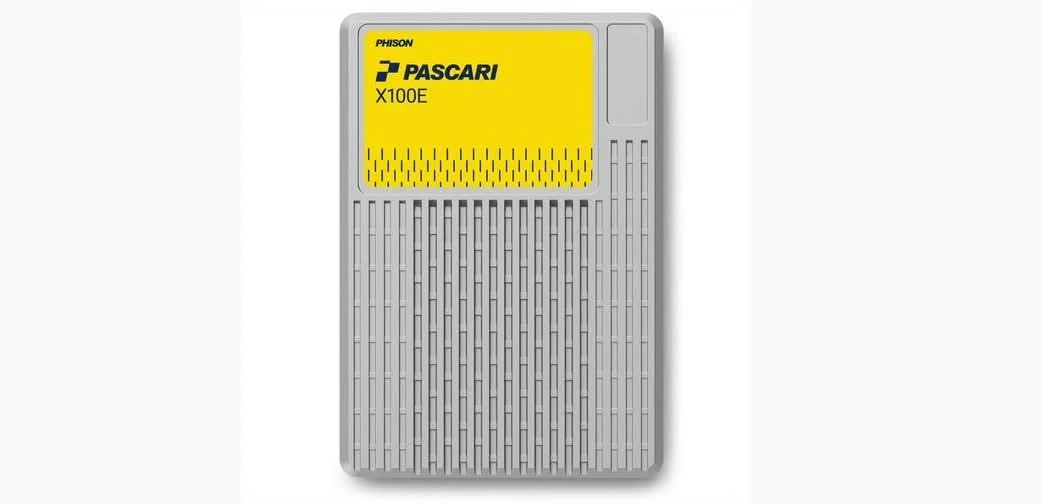

 PHISON XX106H016T40E228T1900 Pascari X100E 6.4TB U.2 Dual Port PCIe Gen4x4 SED SSD

Specifications

Model Number:  XX106H016T40E228T1900

Brand:   PHISON

Alt Part Number(s):    XX106H016T40E228T1900

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  XX106H016T40E228T1900

Capacity: 6.4TB

Security: SED

Form Factor: U.2

Interface: PCIe Gen4x4, Dual Port x2

Advanced Features: AER, Thermal Throttling, Power Loss Protection, SMBus

Compliance: PCIe 4.0, NVMe 1.4, NVMe-MI 1.1, SFF-8639, SFF-TA-1001

Sequential Read/Write (512KB): 7,400 / 7,000 MB/s

Random Read/Write (4KB, QD=128, 8 Jobs): 1,750K / 460K IOPS

Power - Sequential Read/Write (128K): 12W / 19W

Power - Random Read/Write (4KB): 16W / 18W

Power - Mixed 70/30 (4KB): 17W

Power - Idle: 5.9W

DWPD: 3

TBW: 35.04TB

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

Operating Temperature: 0°C to 70°C

Storage Temperature: -40°C to 85°C

Shock - Operating: 500G, 2ms

Shock - Non-operating: 1000G, 0.5ms

Vibration - Operating: 2.17 Grms (200–2000Hz)

Vibration - Non-operating: 16.3 Grms (10–2000Hz)

Drop Resistance: 80cm

Bending Resistance: 50N

Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

RoHS Compliant

LBA Formats: 512B, 4K, Metadata options

Namespaces Supported: 64

Port Type: Dual Port

Reservation Support: Yes

Metadata Protection: Yes

Encryption: AES-XTS 256-bit
