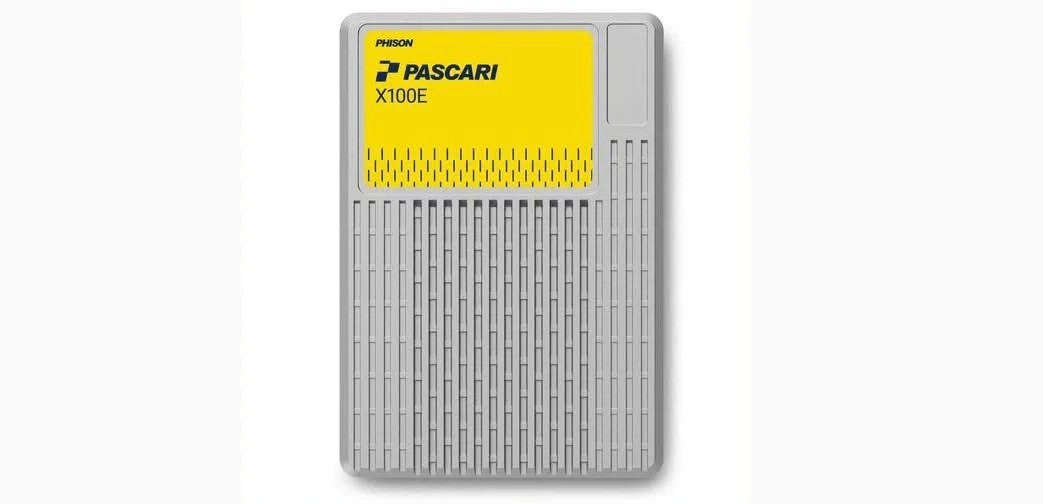

PHISON XP106H016T40E228T1900 Pascari X100E 6.4TB U.2 Single Port PCIe Gen4x4 SED SSD
Overview
Ā PHISON XP106H016T40E228T1900 Pascari X100E 6.4TB U.2 Single Port PCIe Gen4x4 SED SSD
Specifications
Model Number: Ā XP106H016T40E228T1900
Brand: Ā PHISON
Alt Part Number(s): Ā Ā XP106H016T40E228T1900
Product Type:Ā Solid State Drive
Ā
Technical Description
Brand: Ā PHISON
Model: Ā XP106H016T40E228T1900
Capacities: 6.4 TB
Security: SED
Form Factor: U.2
PCIe Interface
PCIe Gen4x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)
Compliance
PCI Express Base Specification Rev. 4.0
NVM Express Base Specification Rev. 1.4
NVM Express Management Interface Rev 1.1
PCI Express SFF-8639 Module Specification Revision 4.0, Version 1.0, SFF-TA-1001 r1.1
512KB Sequential Read / Write (QD=32, Job=1): 7400 MB/s / 7000 MB/s
4KB Random Read / Write (QD=128, Jobs=8): 1750K IOPS / 460K IOPS
Power Consumption
128K Sequential Read (Average RMS): 12 W
128K Sequential Write (Average RMS): 19 W
4KB Random Read (Average RMS): 16 W
4KB Random Write (Average RMS): 18 W
4KB 70/30 Random Read/Write (Average RMS): 17 W
Idle (Average RMS): 5.9 W
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
DWPD: 3
TBW: 35040 TB
Temperature Range
Operating: 0 Ā°C ā 70 Ā°C with specified airflow
Non-operating: -40 Ā°C ā 85 Ā°C
Shock
Operating: 500G, 2ms
Non-operating: 1000G, 0.5ms
Vibration
Operating: 2.17 Grms (200 ā 2000 Hz)
Non-operating: 16.3 Grms (10 ā 2000 Hz)
Drop: 80 cm height
Bending: 50N
Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Product Ecological Compliance: RoHS compliant
Feature Support
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
64 Namespaces
Single Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
SMBus
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
