Overview

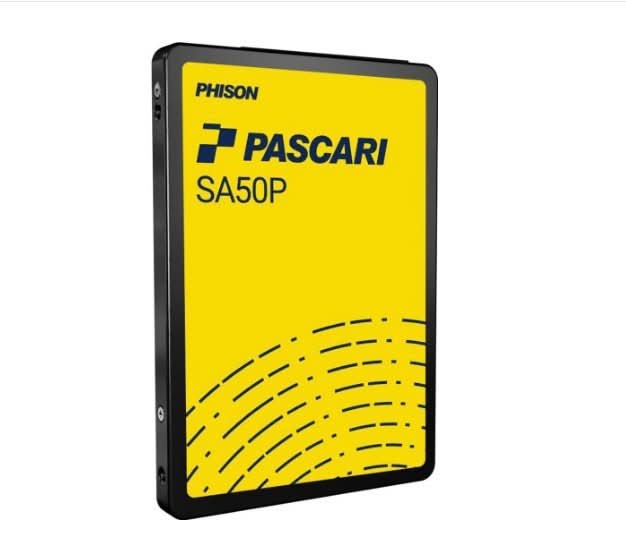

 PHISON S1201K00960GP221T1500 Pascari SA50P 960GB 2.5" SATA III SED SSD

Specifications

Model Number:  S1201K00960GP221T1500

Brand:   PHISON

Alt Part Number(s):    S1201K00960GP221T1500

Product Type:  Solid State Drive



Technical Description

Brand:  PHISON

Model:  S1201K00960GP221T1500

Capacity: 960GB

Security: SED

Form Factor: 2.5" SSD

SATA Interface: SATA Gen3

Compliance: Serial ATA Revision 3.2

Performance
Sequential Read: 530 MB/s
Sequential Write: 500 MB/s
Random Read: 98K IOPS
Random Write: 33K IOPS

Power Consumption
128KB Sequential Read (Average RMS, W): 2.1
128KB Sequential Write (Average RMS, W): 3.0
4KB Random Read (Average RMS, W): 2.3
4KB Random Write (Average RMS, W): 2.9
4KB 70/30 Random Read/Write (Average RMS, W): 2.8
Idle: 1.3 W

Endurance/Reliability
MTBF: 2.0 million hours
UBER: < 1 sector per 10^17 bits Read
DWPD: 1
TBW: 1752TB

Environmental Specifications
Temperature Range:
Operating: 0°C ~ 70°C
Non-operating: -40°C ~ 85°C
Shock:
Operating: 1000G, 0.5ms
Non-operating: 1500G, 0.5ms
Vibration:
Operating: 3.08Grms (7 - 800Hz)
Non-operating: 20G (20 - 2000Hz)
Drop: 80cm height
Bending: 50N force

Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Compliant: RoHS compliant

Feature Support
Hardware Based Power Loss Data Protection
Thermal throttling
End-to-End Data Path Protection
TCG Opal 2.0

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
