Overview

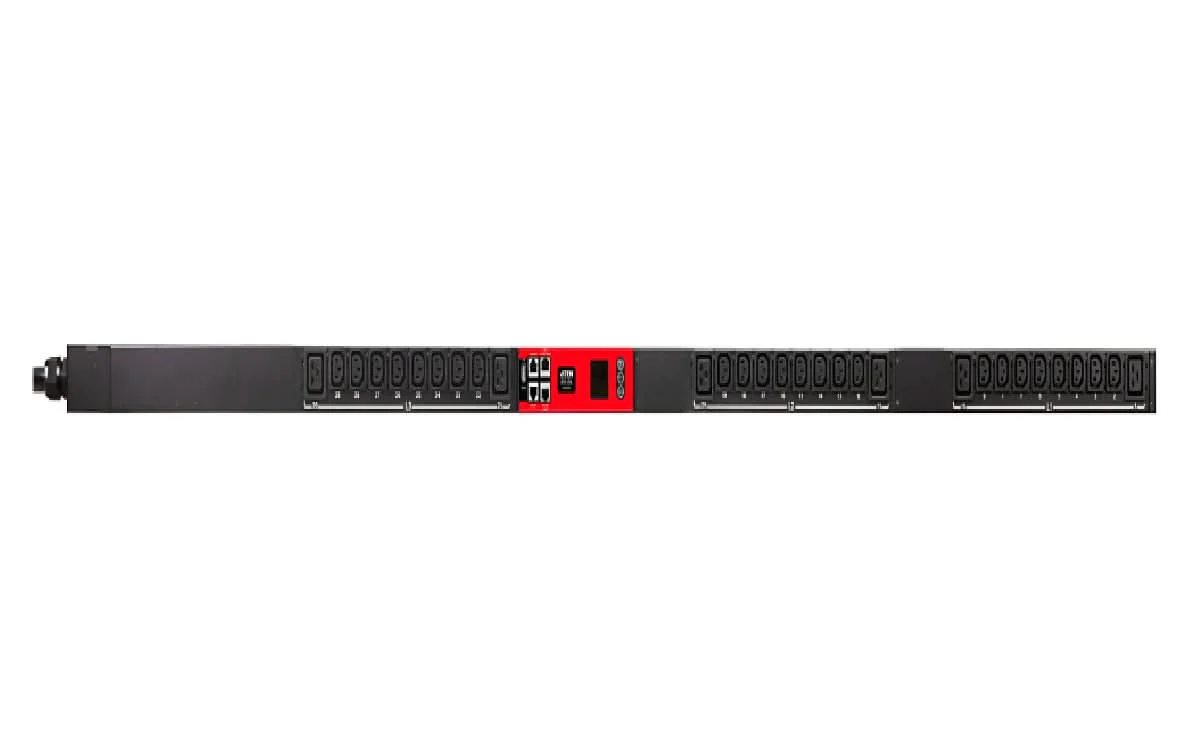

The ATEN PG96330B2 is a 3-Phase Metered and Switched eco PDU designed to provide energy-efficient power distribution and management for high-density IT equipment in data centers and server rooms. It features 30 outlets in a 0U rack-mountable enclosure and is powered by an ARM Cortex-A8 processor for flexible control.



Specifications

Model Number:  PG96330B2

Brand:  Aten

Alt Part Number(s):  PG96330B2

Product Type:  Power Distribution Unit

Technical Description

Brand:  Aten

Model Number:  PG96330B2

Phase:  3-Phase

Plug / Connector Detail:  NEMA L15-20P

Input Current:  20 A

Input Voltage:  208 V AC

Input Connectors:  208V

Input Frequency:  50–60 Hz

Output Connector Type:  6 × IEC 60320 C1, 24 × IEC 60320 C13

Number of Outlets:  30-Outlet

Power Rating (Watt):  10.8 kVA

Protection Type:  Circuit breaker

From Factor:  0U Rackmount

Height:  2.68"

Width:  2.20"

Depth:  70.47"

*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
