Overview

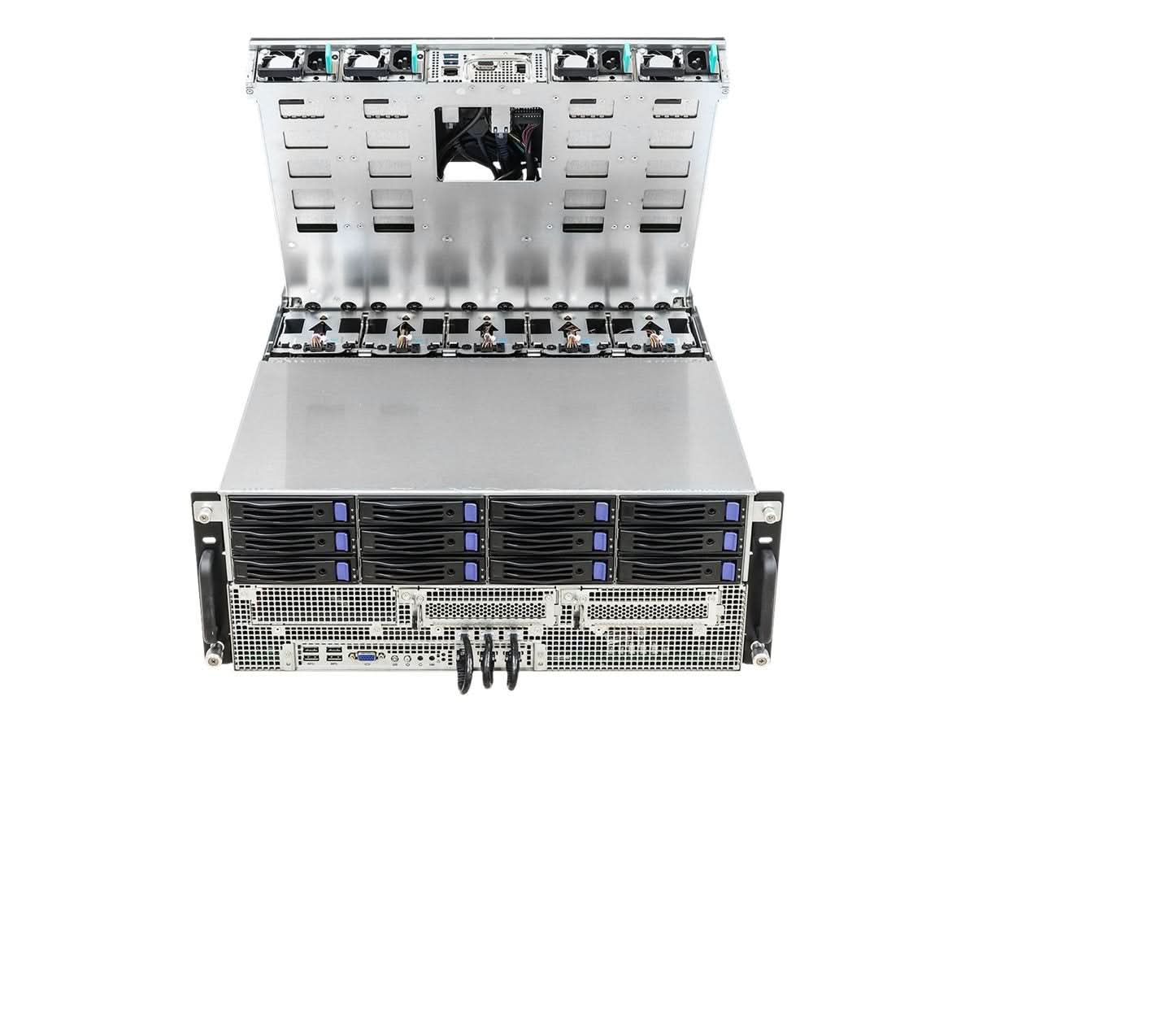

ASRock 4U8G-ICX2/2T Dual Intel Xeon Scalable 4U Rackmount Server supports dual 3rd Gen Intel Xeon processors with up to 8TB DDR4 memory across 32 DIMM slots and speeds up to 3200 MHz. It offers 12 hot-swap 3.5 in drive bays with NVMe SAS and SATA support, 8 PCIe 4.0 x16 slots, dual 10GbE networking, redundant 1600W Platinum power supplies, and IPMI remote management.



Specifications

Model Number:  4U8G-ICX2/2T

Brand:  ASRock

Alt Part Number(s):  4U8G-ICX2/2T

Product Type:  Server

Technical Description

Brand:  ASRock

Model Number:  4U8G-ICX2/2T

Form Factor: 4U Rackmount, GPU Server

Dimensions: 438 × 845 × 176.5 mm

Processor Support: Dual 3rd Gen Intel Xeon Scalable

CPU Socket: 1+1 Socket P+ (LGA 4189)

Chipset: Intel C621A

Thermal Design Power (CPU): Up to 270W

Memory Type: DDR4 RDIMM; DDR4 LRDIMM; DDR4 NVDIMM

Memory Slots: 32 DIMM slots (16 + 16; 2DPC)

Maximum Memory Capacity: Up to 8TB (with LRDIMM)

Maximum Memory Speed: Up to 3200 MHz

Drive Bays: 12 × 3.5 in hot-swap bays

Storage Support: NVMe; SAS; SATA

Internal Storage: 1 × M.2 PCIe 3.0 x4 / SATA (22110/2280)

PCIe Expansion: 8 × PCIe 4.0 x16 FHFL slots (rear)

Network Connectivity: Dual 10GbE (Intel X710-AT2)

Management: IPMI 2.0 with iKVM and vMedia

BMC Controller: ASPEED AST2500

Power Supply: 3+1 CRPS redundant; 1600W

Power Efficiency: 80-PLUS Platinum

Operating Temperature: 10°C to 35°C



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
