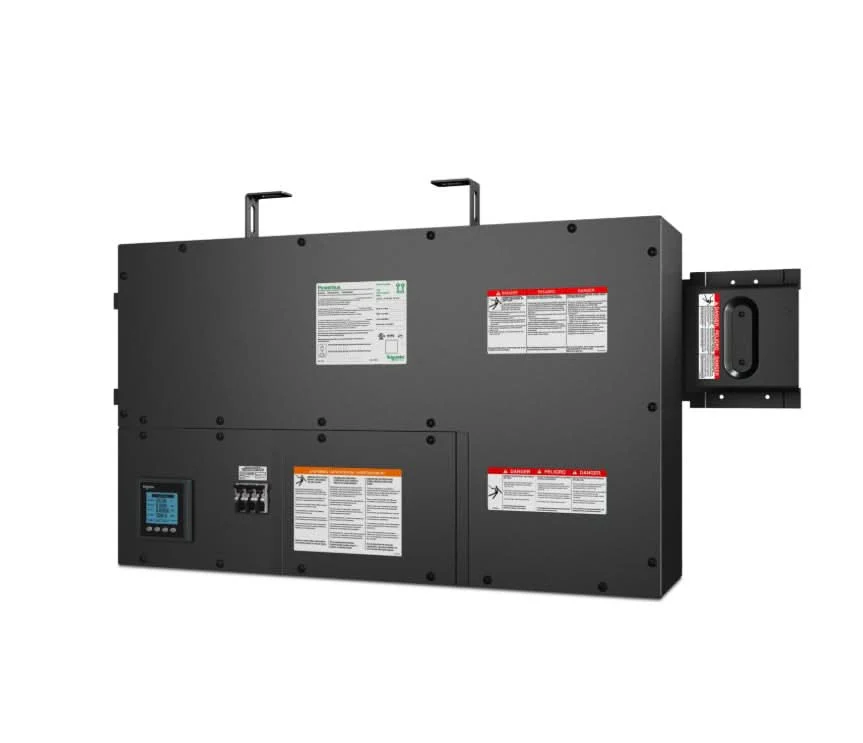

APC PBCE4A400AST120B 3-Phase 400A 415 V PB Busway
Overview
The product code PBCE4A400AST120B refers to an APC by Schneider Electric Powerbus busway straight distribution section. It is designed for scalable and flexible overhead power distribution in environments like data centers. Modular design with spring-joint connectors for fast and easy "hook-swing" installation without special tools.
Specifications
Model Number: PBCE4A400AST120B
Brand: APC
Alt Part Number(s): PBCE4A400AST120B
Product Type: PB Busway
Technical Description
Brand: APC
Model Number: PBCE4A400AST120B
Input Phase: 3-Phase
Rated Current: 400A
Input Voltage: 208V
Frequency: 60 Hz
Output Voltage: 415 V
Output Connector: NEMA L6-30R
Cord Length: 10ft
Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C)
Operating Relative Humidity: 0 – 95 %
Operating Elevation: 0 – 10,000 ft (0 – 3,000 m)
Storage Temp: -22 °F to 158 °F (-30 °C to 70 °C)
Height: 4.35"
Width: 120"
Depth: 5.51"
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
